Basic partition panel - above-door 102.11/C

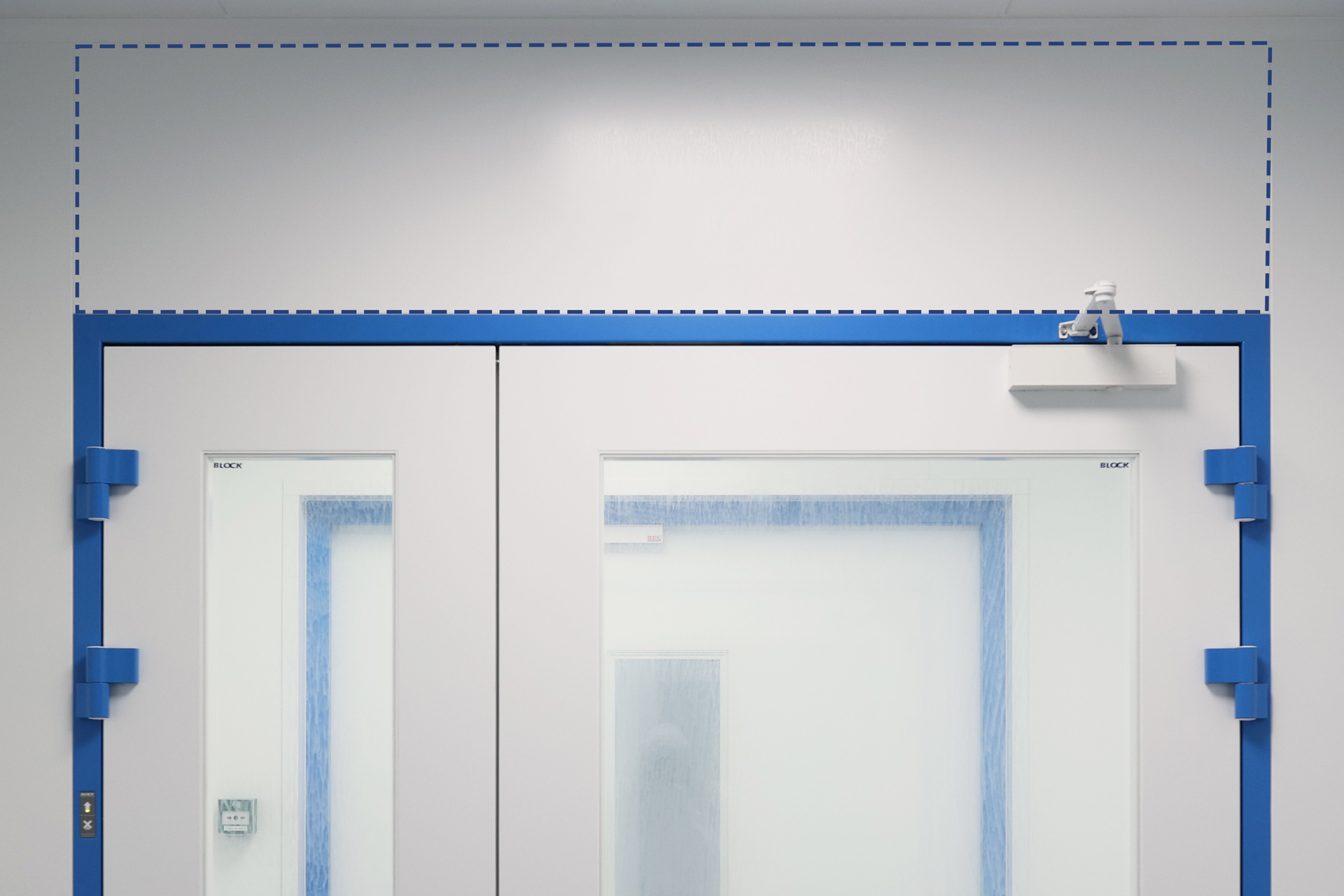

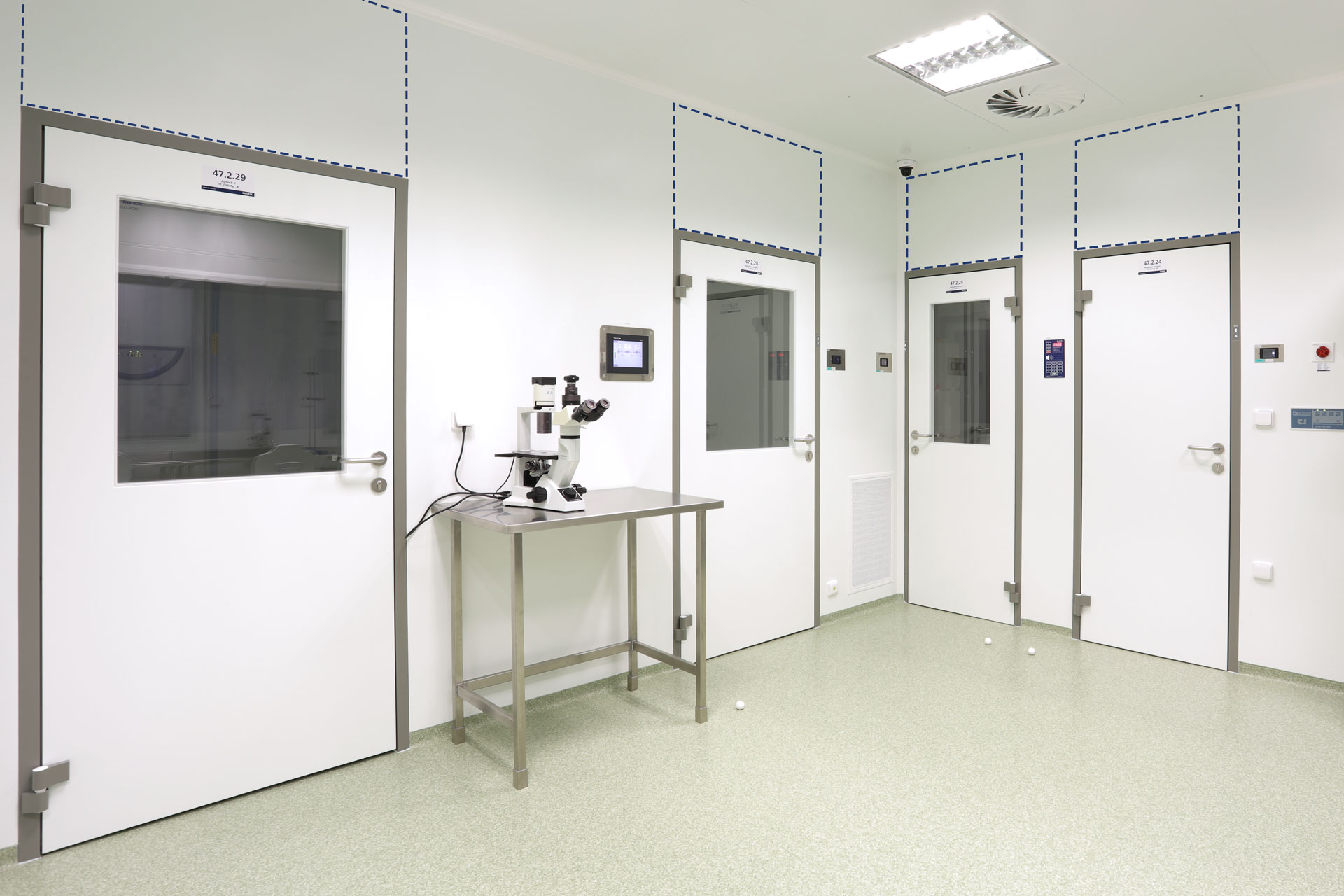

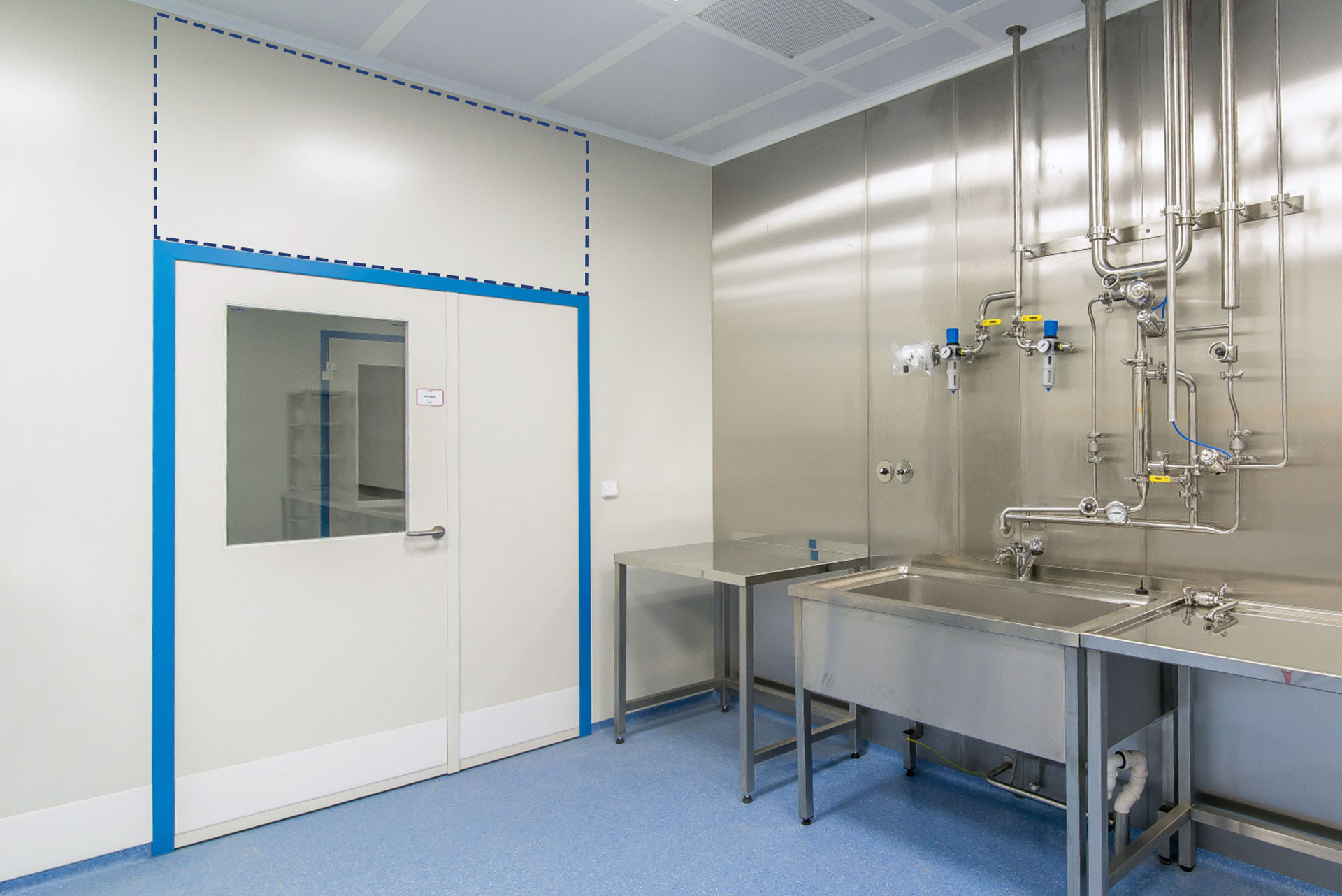

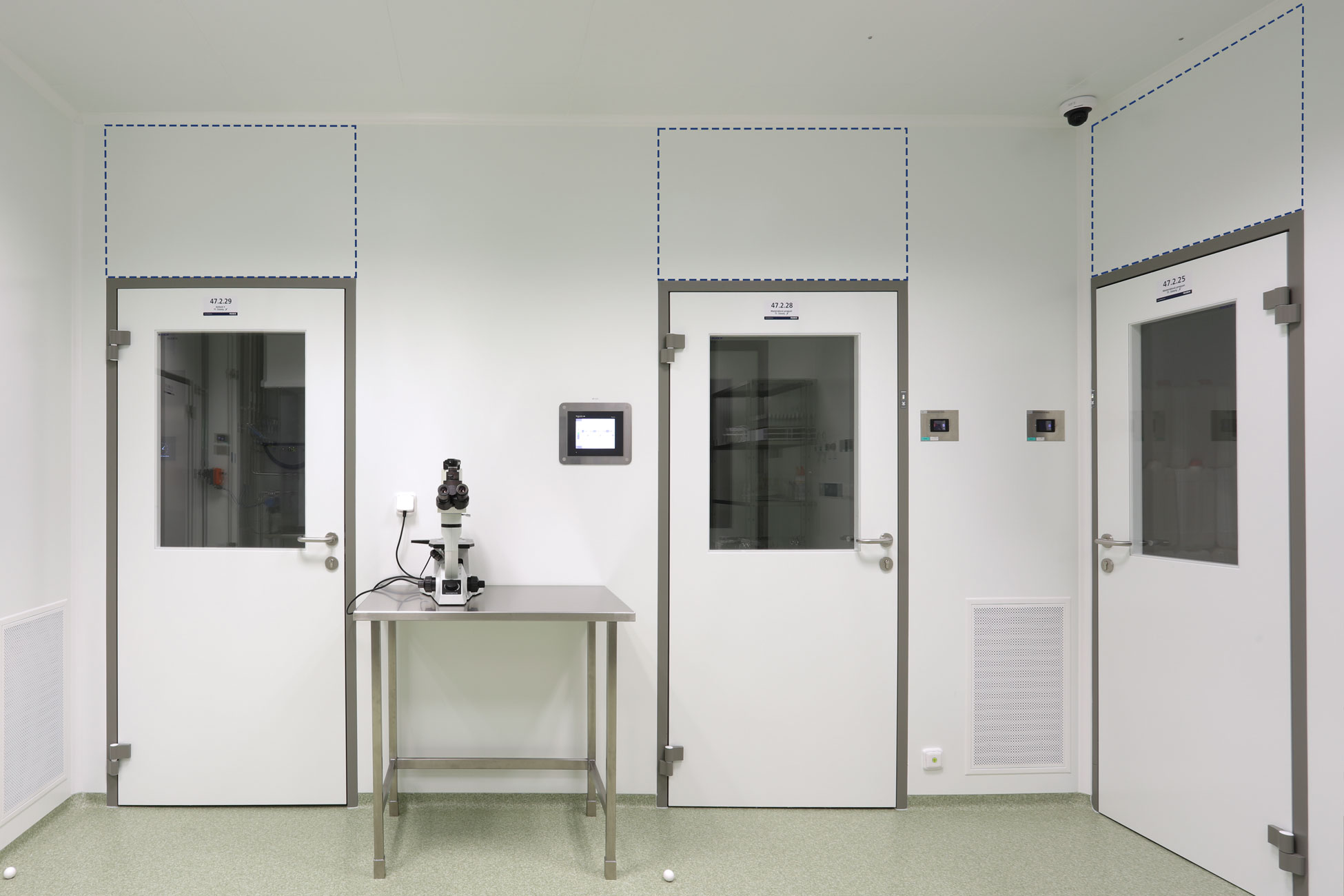

The above-door partition panel is a panel that complements the basic panels (chapter 102.01) and is used above door in the partition system Forclean.
TECHNICAL DATA
| Panel type |
|---|
| basic partition panel - above-door |
| Panel thickness |
|---|
| 100 mm |
| 120 mm |
| 60 mm |
| 80 mm |
| Panel width W |
|---|
| 1020 mm |
| 1220 mm |
| 1420 mm |
| 1620 mm |
| 1820 mm |
| 820 mm |
| Panel height H |
|---|
| 1030 mm |
| 530 mm |
| 730 mm |
| Side end |
|---|
| groove - tongue |
| tongue - tongue |
| groove - straight |
| groove - groove |
| straight - tongue |
| Bottom end |
|---|
| basic+reinforcement |
| clasic+simple reinforcement |
| clasic+reinforcement |
| atypical |
| Upper end |
|---|
| clasic (straight) |
| clasic (straight) |
| atypical |
| no upper bend (high panels) |
| Number of cable glands |
|---|
| no cable gland |
| 2 pcs (1 pc 85 mm from the left - 1 pc 85 mm from the right) |
| cable glands from the left, cable glands from the right |
| Filler |
|---|
| Mineral wool |
| PSE - foam polystyrene |
| Atypical |
| Facing hue and material - standard on the visible side |
|---|
| Galvanized metal sheet, hue RAL 9002 |
| Galvanized metal sheet, hue RAL 9016 |
| Stainless steel AISI 304 |
| Aluminium sheet, hue RAL |
| Galvanized metal sheet, hue RAL |
| Facing hue and material - standard on the rear side |
|---|
| Galvanized metal sheet, hue RAL 9002 |
| Galvanized metal sheet, hue RAL 9016 |
| Stainless steel AISI 304 |
| Aluminium sheet, hue RAL |
| Powder coating (Komaxit), hue RAL |
| Atypical design |
|---|
| Type design |
| Atypical design |
Type design
0 - Unique specification out of offered versions
Atypical design
Q - atypical design that cannot be uniquely specified by a code |
